EL2904 EtherCAT 4 Channel Beckhoff Digital Output Module Integrated
Product Details:
| Place of Origin: | GERMANY |
| Brand Name: | BECKHOFF |
| Certification: | CO |
| Model Number: | EL2904 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | BRAND NEW WITH FACTORY PACKAGE |
| Delivery Time: | 2-3 days |
| Payment Terms: | T/T |
| Supply Ability: | 100PCS PER WEEK |
|
Detail Information |
|||
| PART NO.: | EL2904 | Weight: | 0.2 KG |
|---|---|---|---|
| Actual Price: | Negotiabled | Condition: | New Original With Sealed |
| Application: | Oil And Gas Factory | Color: | Normal |
| High Light: | 4 Channel Beckhoff Digital Output Module,EL2904 Beckhoff Digital Output Module |
||
Product Description

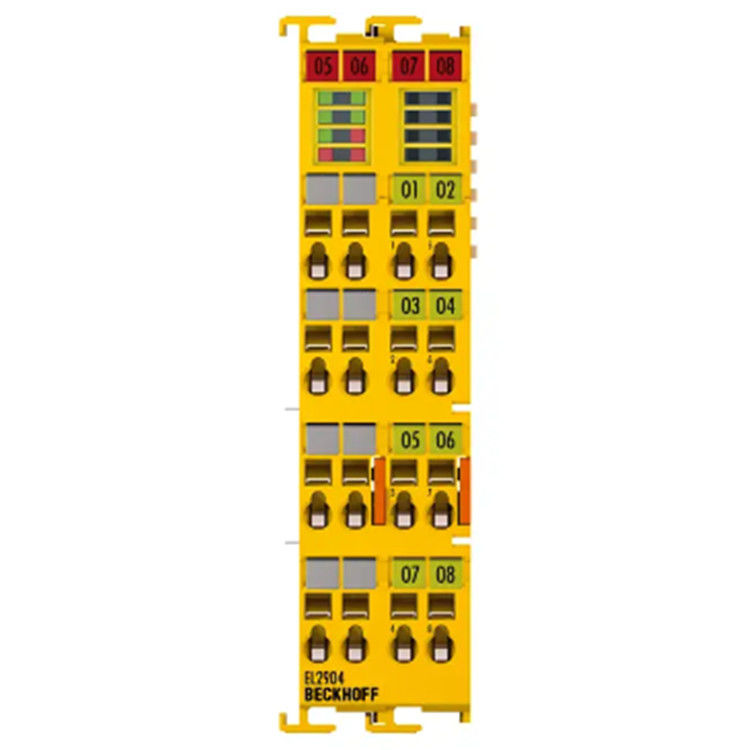

BECKHOFF EL2904 EtherCAT 4-Channel Digital Output Module
Description
|
Model |
EL2904 |
|
Brand/Manufacturer |
Beckhoff |
|
DataSheet/Catalogue |
In PDF File |
|
Weight/Dimension |
24 mm x 100 mm x 68 mm |
|
Condition |
Brand new |
|
Description |
EtherCAT Terminal, 4-channel digital output, 24 V DC, 0.5 A, TwinSAFE
|
Technical Data
The EL2904 TwinSAFE component is a digital output terminal with four channels. It switches 24 V DC actuators with up to 0.5 A per channel and has four fail-safe outputs. The outputs are controlled by a TwinSAFE Logic-capable component via FSoE. The component automatically switches off if it detects an error (fail-stop).
The EL2904 has safety parameters to specifically adapt the functionality to the respective safety requirements. For example, a current measurement at the outputs and a test of the outputs can be configured in order to be able to detect cross-circuits among other things and to react appropriately.
Special features:
4 safe outputs
integrated current measurement
testing of the channels can be activated
Standard outputs can be activated with integrated AND connection with a safe output signal
